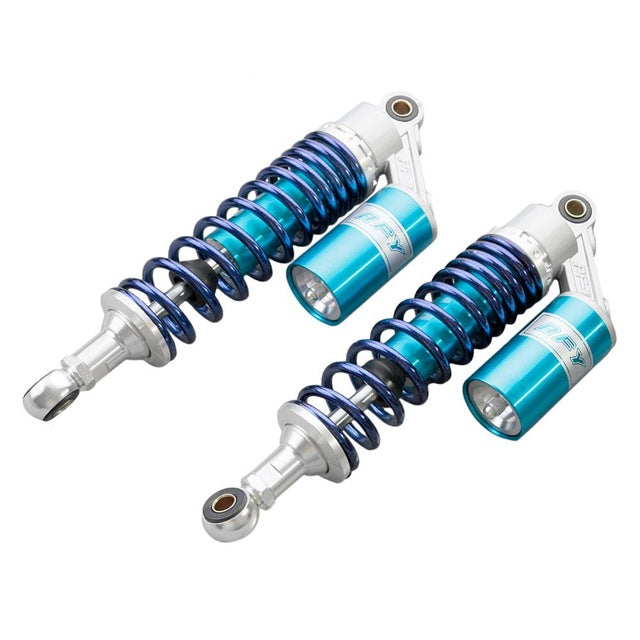

Great upgrade over stock shocks
Adjustable to fit your riding needs
Specifications:
(Please check dimension before ordering)
|
Length
Eye to Eye
|
Total
Length
|
Spring
Dia.
|
Spring
Width
|
Working
Stroke
|
Maximum
load
|
| 320mm (12 5/8") |
350mm (13 3/4") |
7mm |
60mm |
60mm |
(≈440 lbs) |
| 340mm(13 3/8") |
370mm (14 3/4") |
8mm |
60mm |
68mm |
(≈660 lbs) |
| 375mm (14.75") |
400mm (15.75") |
8mm |
60mm |
68mm |
(≈660 lbs) |
| 400mm (15 3/4") |
430mm (17") |
8mm |
60mm |
68mm |
(≈660 lbs) |
Eye Diameter(with bushing): 12mm
Eye Diameter(with bushing removed): 16mm
Eye Thickness: 21mm
Eye Maximum Tensile Strength: 2,000 Kgf
Spring Width: 60mm
Spring Stiffness: 110 kg
Air Reservoir: Adjustable
Factory Air Pressure: 0.4 Mpa
Maximum Air Pressure: 0.5 Mpa
Installation manual is not included
Installation by qualified mechanic is recommended.
Package includeds: 1 pair of shock absorbers
